Similarity-based Saliency Map (SBSM) Generation
Introduction
This notebook contains a working example of the Similarity Based Saliency Maps (SBSM) API for transforming input images into saliency heatmaps based on their similarity.
This will necessarily include the use of a deep model for feature vector generation that we will be determining the saliency for. We will fill this role here with a PyTorch Imagenet-pretrained ResNet18 network truncated after the last global average pooling layer.
Table of Contents
Miscellaneous
License for test images used may be found in ‘COCO-LICENSE.txt’.
References
Dong, Bo, Roddy Collins, and Anthony Hoogs. “Explainability for Content-Based Image Retrieval.” CVPR Workshops. 2019.
To run this notebook in Colab, use the link below:
Set Up Environment
Note for Colab users: after setting up the environment, you may need to “Restart Runtime” in order to resolve package version conflicts (see the README for more info).
import sys # noqa
!{sys.executable} -m pip install -qU pip
!{sys.executable} -m pip install -q xaitk-saliency
!{sys.executable} -m pip install -q "torch>=1.9.0"
!{sys.executable} -m pip install -q "torchvision>=0.10.0"
The Test Images
We will test this application on the following images. We know that these images contains the Imagenet class of “boxer” and the superclass “dog”.
import os
import urllib.request
import matplotlib.pyplot as plt
import numpy as np
import PIL.Image
# Test images to be explained
os.makedirs("data", exist_ok=True)
test_image1_path = "data/catdog.jpg"
urllib.request.urlretrieve("https://farm1.staticflickr.com/74/202734059_fcce636dcd_z.jpg", test_image1_path)
test_image2_path = "data/dog.jpg"
urllib.request.urlretrieve("https://farm5.staticflickr.com/4089/4990202073_725f035a15_z.jpg", test_image2_path)
test_image1 = np.array(PIL.Image.open(test_image1_path))
test_image2 = np.array(PIL.Image.open(test_image2_path))
# Use JPEG format for inline visualizations here.
%config InlineBackend.figure_format = "jpeg"
plt.figure(figsize=(12, 8))
plt.subplot(1, 2, 1)
plt.axis("off")
plt.imshow(test_image1)
plt.subplot(1, 2, 2)
plt.axis("off")
_ = plt.imshow(test_image2)
Feature-Extraction Model
In this example, we will use a basic PyTorch-based, pretrained ResNet18 model truncated after the global average pooling (GAP) layer and use GAP’s output as the feature vector representing content of the input image. The ResNet18 model results in a 512 dimension feature vector after the GAP layer in a ResNet18.
This model is wrapped in an implementation of the smqtk_descriptors.ImageDescriptorGenerator interface to make it compatible with our saliency generation API.
Note that the use_cuda parameter can be set to True to accelerate computation if a CUDA device is available.
from collections.abc import Iterable
from typing import Any
import torch
import torchvision.models as models
from smqtk_descriptors.interfaces.image_descriptor_generator import ImageDescriptorGenerator
from torch import nn
from torch.autograd import Variable
from torchvision import transforms
from typing_extensions import override
class ResNet18Generator(ImageDescriptorGenerator):
"""Implementation of the smqtk_descriptors.ImageDescriptorGenerator interface using ResNet18"""
def __init__(self, use_cuda: bool = False) -> None:
"""Initialize ResNet18 model"""
# load pretrained model
model = models.resnet18(pretrained=True)
# truncate model
model = nn.Sequential(*list(model.children())[:-1])
if use_cuda:
model = model.cuda()
self.use_cuda = use_cuda
self.model = model.eval()
self.model_input_size = (224, 224)
self.model_mean = [0.485, 0.456, 0.406]
self.blackbox_fill = np.uint8(np.asarray(self.model_mean) * 255)
self.model_loader = transforms.Compose(
[
transforms.ToPILImage(),
transforms.Resize(self.model_input_size),
transforms.ToTensor(),
transforms.Normalize(mean=self.model_mean, std=[0.229, 0.224, 0.225]),
],
)
def image_loader(self, image: np.ndarray) -> np.ndarray:
"""Load image"""
image = self.model_loader(image).float()
image = Variable(image, requires_grad=False)
if self.use_cuda:
image = image.cuda()
return image.unsqueeze(0)
@override
@torch.no_grad()
def generate_arrays_from_images(self, img_mat_iter: Iterable[np.ndarray]) -> Iterable[np.ndarray]:
"""Generate image descriptor for images"""
for img_mat in img_mat_iter:
feat = self.model(self.image_loader(img_mat))
yield feat.cpu().detach().numpy().squeeze()
def get_config(self) -> dict[str, Any]:
"""Required by interface"""
return {}
desc_gen = ResNet18Generator(use_cuda=False)
Saliency Generator
The SBSMStack class from xaitk_saliency generates similarity based saliency maps using a perturbation-occlusion approach.
Saliency is derived from differences in the output of our feature extractor when passing occluded versions of our reference image.
Specifically, this class uses the SlidingWindow image perturber and SimilarityScoring saliency map generation algorithms.
We set the generator to use the occlusion fill from our feature extractor.
from xaitk_saliency.impls.gen_image_similarity_blackbox_sal.sbsm import SBSMStack
sal_generator = SBSMStack(window_size=(40, 40), stride=(15, 15), fill=desc_gen.blackbox_fill, threads=4)
Generating Saliency
Below, we demonstrate the ability to compute salient regions both between two images, “a” and “b”, and the same image. Regions within computed self-similarity generally track the regions encoded by the feature vector.
a -> b
b -> a
a -> a
b -> b
Note that the original implementation of SBSM intentionally constrains its saliency values to the [0,1] range due to only trying to explain regions of positive influence. Therefore the negative saliency maps appear to be empty.
Saliency is computed for the reference image, which is compared to each of the specified query images.
def show_sal_map(ref_image: np.ndarray, query_image: np.ndarray, sal_map: np.ndarray) -> None:
"""Display images and saliency map in a nice format"""
plt.figure(figsize=(12, 6))
plt.subplot(2, 3, 1)
plt.imshow(ref_image)
plt.axis("off")
plt.title("Reference Image")
plt.subplot(2, 3, 2)
plt.imshow(query_image)
plt.axis("off")
plt.title("Query Image")
# Some magic numbers here to get colorbar to be roughly the same height
# as the plotted image.
colorbar_kwargs = {
"fraction": 0.046 * (ref_image.shape[1] / ref_image.shape[0]),
"pad": 0.04,
}
print(f"Saliency map range: [{sal_map.min():.3g}, {sal_map.max():.3g}]")
# Positive half saliency
plt.subplot(2, 3, 3)
plt.imshow(ref_image, alpha=0.7)
plt.imshow(np.clip(sal_map, 0, 1), cmap="jet", alpha=0.3)
plt.clim(0, 1)
plt.colorbar(**colorbar_kwargs)
plt.title("Pos Saliency")
plt.axis("off")
# Negative half saliency
plt.subplot(2, 3, 6)
plt.imshow(ref_image, alpha=0.7)
plt.imshow(np.clip(sal_map, -1, 0), cmap="jet_r", alpha=0.3)
plt.clim(-1, 0)
plt.colorbar(**colorbar_kwargs)
plt.title("Neg Saliency")
plt.axis("off")
plt.show()
plt.close()
# Computing saliency across all combinations of the two test images as query
# and reference images for Sliding Window-based perturbation
# a -> b
# a -> a

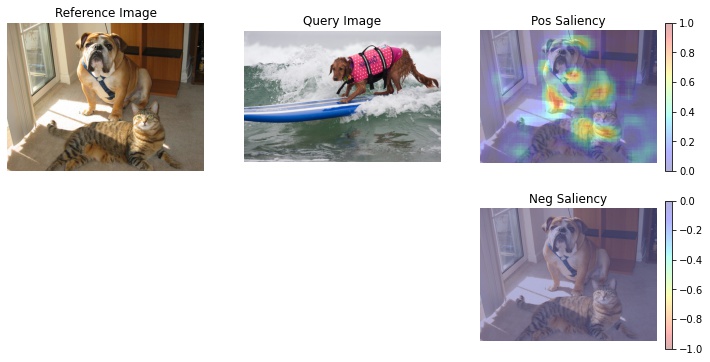

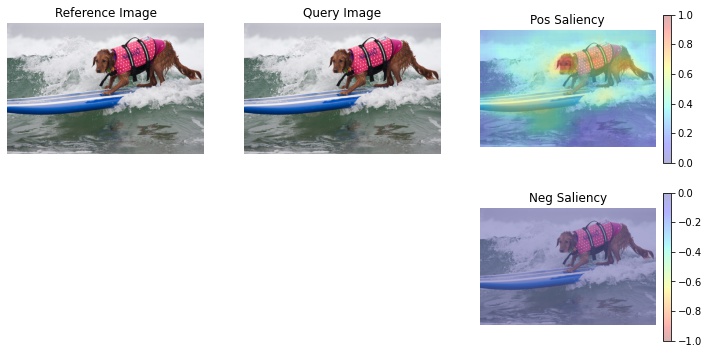

sal_maps = sal_generator(ref_image=test_image1, query_images=[test_image2, test_image1], blackbox=desc_gen)
show_sal_map(test_image1, test_image2, sal_maps[0])
show_sal_map(test_image1, test_image1, sal_maps[1])
# b -> a
# b -> b

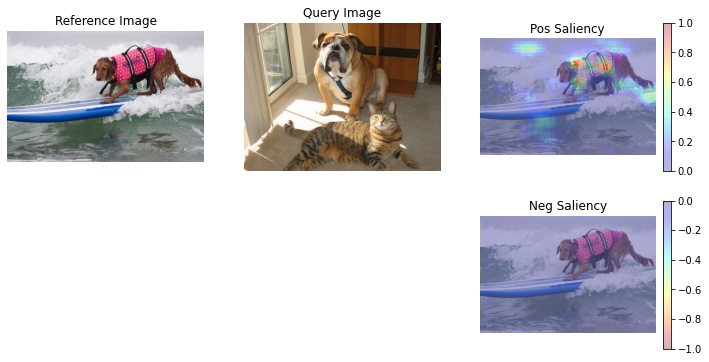

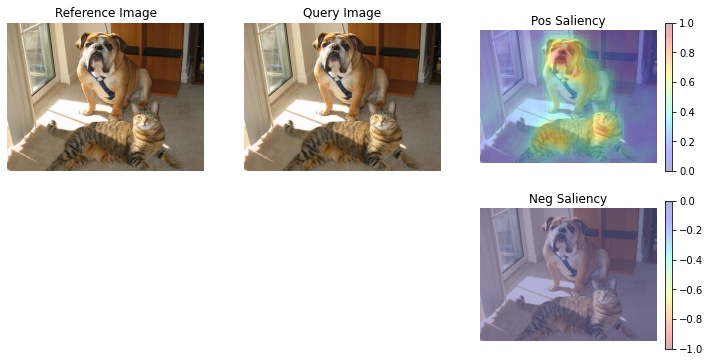

sal_maps = sal_generator(ref_image=test_image2, query_images=[test_image1, test_image2], blackbox=desc_gen)
show_sal_map(test_image2, test_image1, sal_maps[0])
show_sal_map(test_image2, test_image2, sal_maps[1])
/home/local/KHQ/elim.schenck/anaconda3/envs/test/lib/python3.9/site-packages/torch/nn/functional.py:718: UserWarning: Named tensors and all their associated APIs are an experimental feature and subject to change. Please do not use them for anything important until they are released as stable. (Triggered internally at /pytorch/c10/core/TensorImpl.h:1156.)
return torch.max_pool2d(input, kernel_size, stride, padding, dilation, ceil_mode)
Saliency map range: [0, 1]
Saliency map range: [0.0607, 1]
Saliency map range: [0, 1]
Saliency map range: [0.079, 1]
